Precise foam trimming or cutting in layers

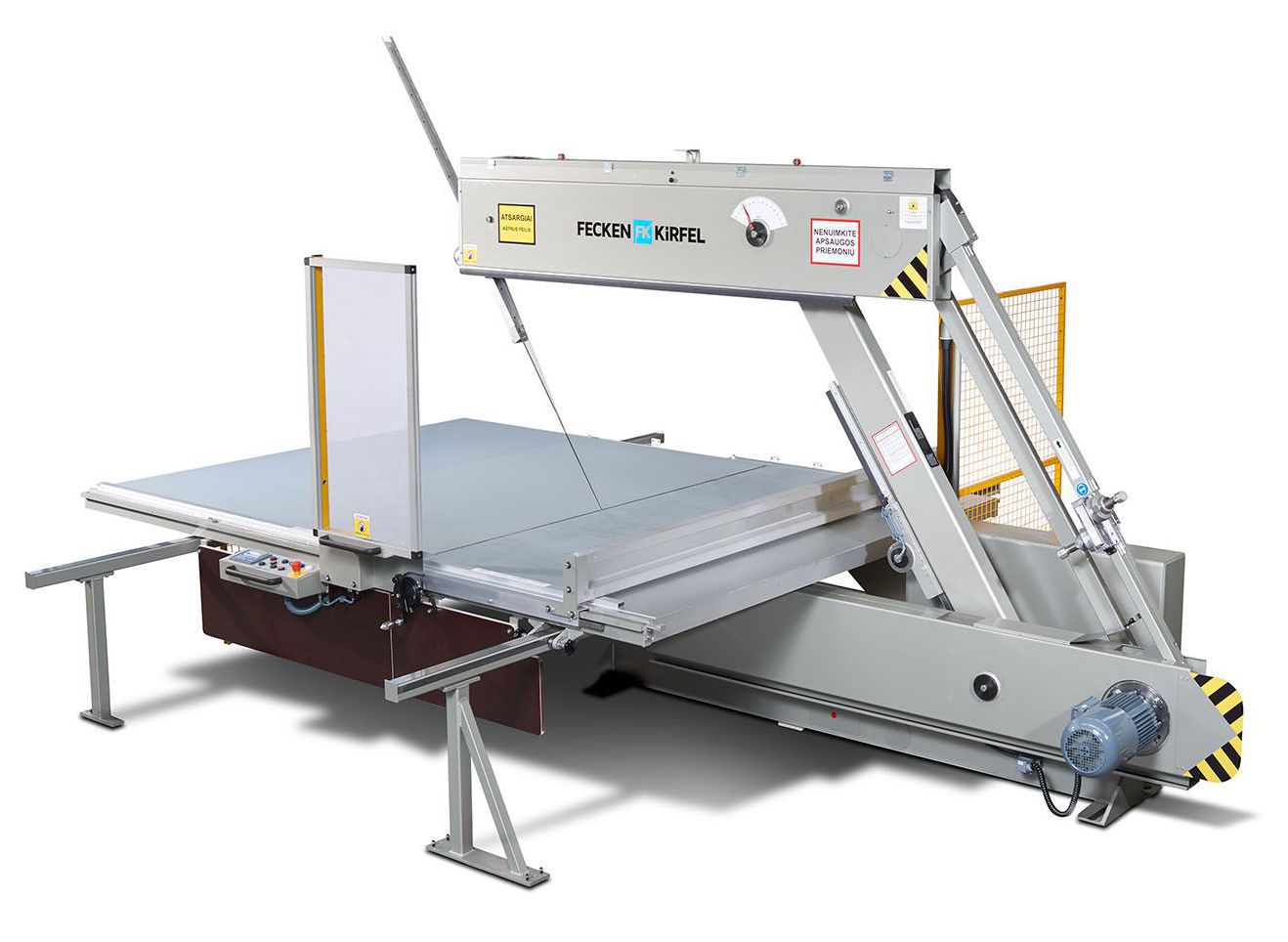

The manual vertical and angle cutting machine V 24 trims blocks and plates precisely out of PU flexible foam (polyether and polyester), PVC flexible foam and similar materials. Furthermore, the V 24 allows the division into rectangular cuts as well as the production of wedge-shaped cuts. The motorized tilting of the aggregation, optionally also available via the follow-up system, enables for angle cutting and is tiltable from the vertical position (90°) to 30° to the left and to 20° to the right. The material is delivered via a manual sliding table. The slopingly electro-welded bandknife enables the cut into two directions. It is also possible to equip the V 24 with a bandsaw.
Cutting accurately thanks to a precision-knife-guidance and bandknife grinding-device
A knife grinding device with frictionally driven cup grinding wheels always ensures exact cutting results. The precision-knife-guidance with double rolls ensures that the bandknife always stays in the perfect position, even when cutting foams with high densities. In addition, the upper knife guidance can be adjusted in a motorized manner.
Option: V 24 S - Execution with a bandsaw
On the processing of PU rigid foam, styrofoam and similar rigid foams, the V 24 can also be equipped with a bandsaw.
