Split PU foam blocks efficiently into thin layers
S series automatic circular splitting and stacking machines cut foam blocks fully automatically - even into extremely thin layers and at high cutting speeds. The S 20 to S 41 models' extensive fields of application include the upholstered furniture and mattress industry, the packaging industry, and technical materials.
Precise cutting of heavy blocks
Various additional options make the machines particularly powerful: Even very heavy blocks can be loaded, unloaded, and easily handled with the air cushion system. Unlike horizontal tabletop machines, the circular table does not need to perform a return run, thereby increasing production capacity. The optimized vacuum system fix the blocks and works together with the angle adjustment system to ensure precise cuts.
The optimization software allows an increased material exploitation
All S models are controlled by an industrial PC with a separate control panel and cutting speed can be adjusted continuously. Using the optional software tool FKOpti-Sheet+, you can optimize material use and save up to 10% on material per block. Machines from the S series can also cut extremely light materials and harder foams with precision using the optional upper roller.
S 20 - S 36:
The cutting unit allows the bandknife angle to be adjusted from -5° to +5°. This allows layers of any size and thickness to be cut to perfection over the entire block height - without lifting the block. The extremely low-friction bondstrip and its pre-tension guarantee a very low cutting pressure.

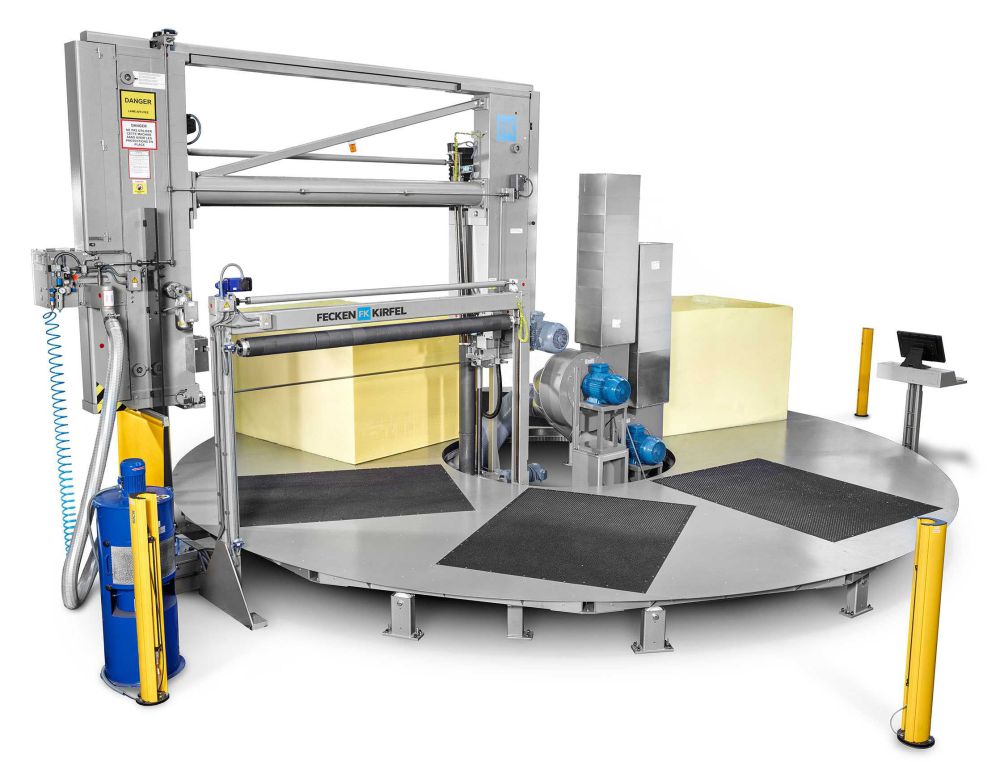

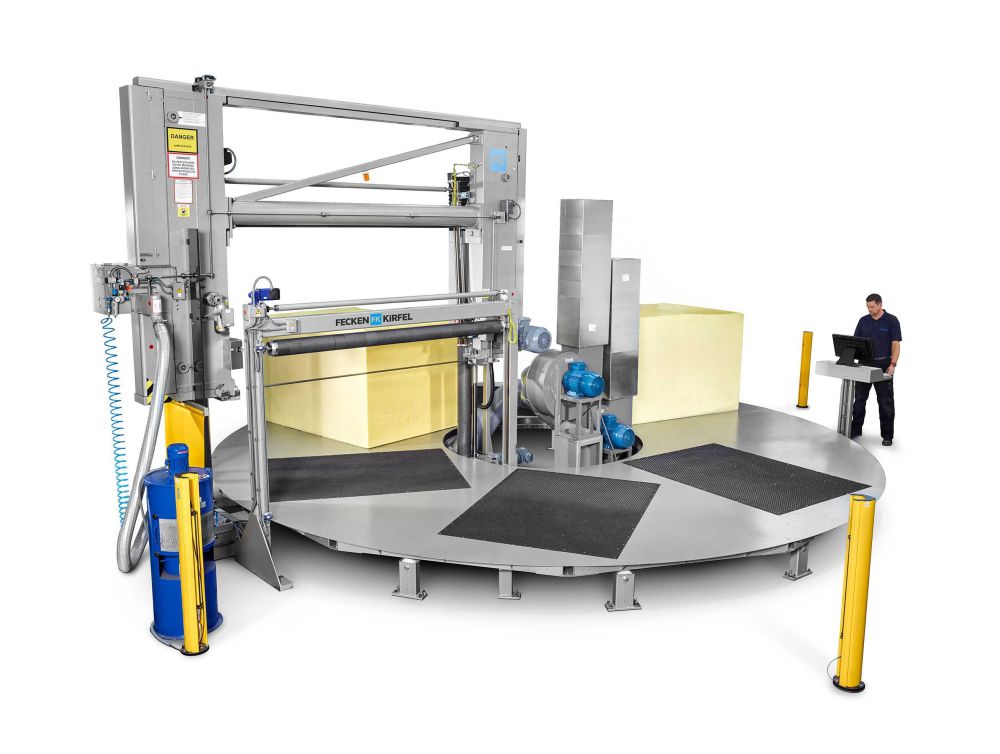

The S 41 carousel machine's extremely robust cutting unit is fully swivelable. The construction remains stable even at very high bondstrip tensions, meaning the bandknife can be guided with precision at all times. The automatic CBN bandknife grinding device and automatic bandknife adjustment ensure cuts are always precise.
