Produce cork and high density rebond foam foils

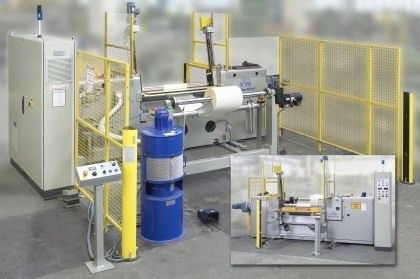

The R 23 bandknife peeling machine cuts thin foils with tolerances of +/- 0.1 mm [0.004 in] (depending on material) from cylinders made of cork, cork rubber, rebond foam, Vulkollan, and similar materials.
Peel and wind-up roll goods economically
The material cylinder is fixed to a peeling mandrel and rotated via a motorized feed roller. The desired layer thickness can be easily set by using change gears or alternatively electronically (option). The material cylinder is moved vertically via lifting spindles, before being evenly fed into the circulating bandknife. The peeled foil can then be continually wound up by the next device (R 39).
Cut thin material layers with precision
The R 23's side guides allow the material cylinder to be lowered smoothly and evenly. Hardened and ground bandknife guides ensure that the bandknife is guided with precision. An automatic bandknife adjustment ensures that the bandknife is always in the perfect position ? even when worn ? thereby guaranteeing a precise cutting result. The R 23 also features an integrated grinding device to ensure a consistently high cutting quality.
